History

The history of bolts and nuts goes back a long time: evidence of the use of primitive bolts can be traced back to the Roman era. The threaded bolt was first used in the 15th century, but it was during the Industrial Revolution in the 18th century that the bolted joint became commonly used in the engineering and construction world.

Steel-on-steel connections

In the modern age, bolts are mainly used in tension joints or joints where preload is used to create friction. The friction is used to prevent the clamped components to shift. In both types of connections the homogeneousness between and pre-load in the bolts is important.

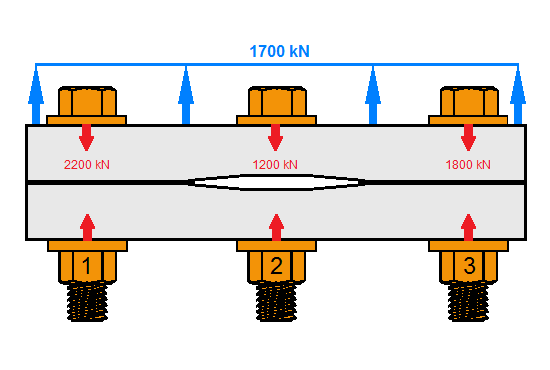

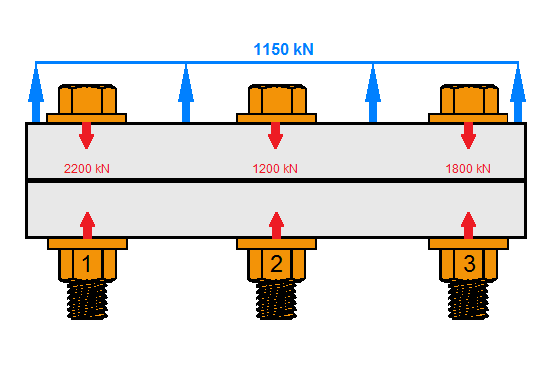

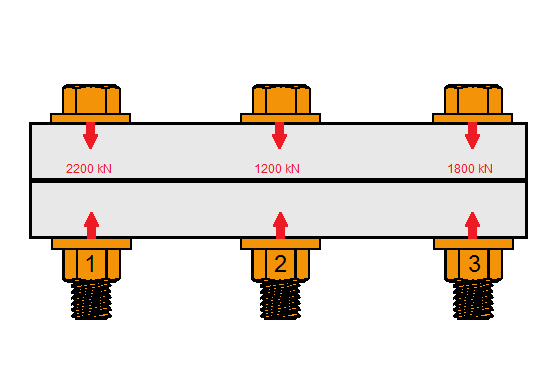

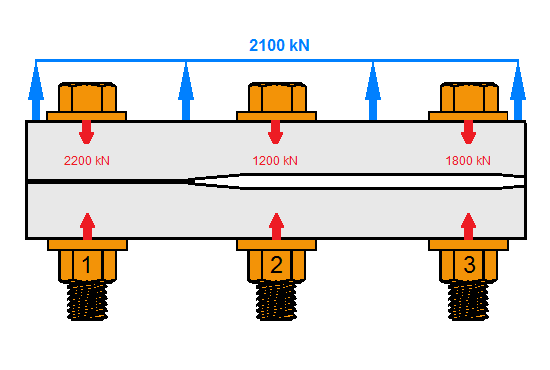

In a tension joint, the pre-load in the bolts clamp the components together. The tension forces on these connections are transmitted through the preloaded connection. The ultimate strength of the connection depends on the strength of the bolts in the connection. Durability and fatigue life depends on the amount of pre-load in the bolts. If the external load exceeds the pre-load in the bolts, the flange can theoretically separate and all the bolts in the connection will be subject to cyclic stress. Cyclic stress in the bolts will reduce the fatigue life of these bolts causing premature failure. The more the external load exceeds the pre-load in the bolt, the bigger the effect on the fatigue life of the bolt. A high and even pre-load in a connection will therefore increase the fatigue life of the bolts in this connection substantially.

Current systems

Most of the bolted connections are made using a torque wrench. Torque causes a rotation of the nut or bolt that, due to the geometrical shape, is transferred to a tensile force. During this transfer, about 90% of the torque is lost in an increasing resistance. The buildup of tensile load or pre-load, stops when the resistance is equal to the torque applied to the fastener. As the resistance differs between the bolts, there will be a difference in applied load using the same torque.


The current guidelines for steel on steel flanges are set up using the assumption that all fasteners;

• are all made of the same material with similar properties
• have an equal resistance or K-factor
• are not influenced by temperature or other weather conditions
• are being tightened by equipment that delivers the same torque at any circumstance
• are not influenced by each other in the same connection
• are pre-loaded in the same manner by different technicians
• respond in the same way in a laboratory as in real life outside conditions
• experience the same resistance with grease in a laboratory as in an outside environment

These are just a few of the factors that are not taken into consideration when determining the method and torque needed to pre-load the bolts in a flange.

BoltLife has performed several tests with traditional methods, using ultrasonic bolt load measurement in a controlled workshop environment and in actual offshore conditions.

The results of these tests were compared to the results of similar tests using a newly developed procedure for steel-on-steel bolted flanges.

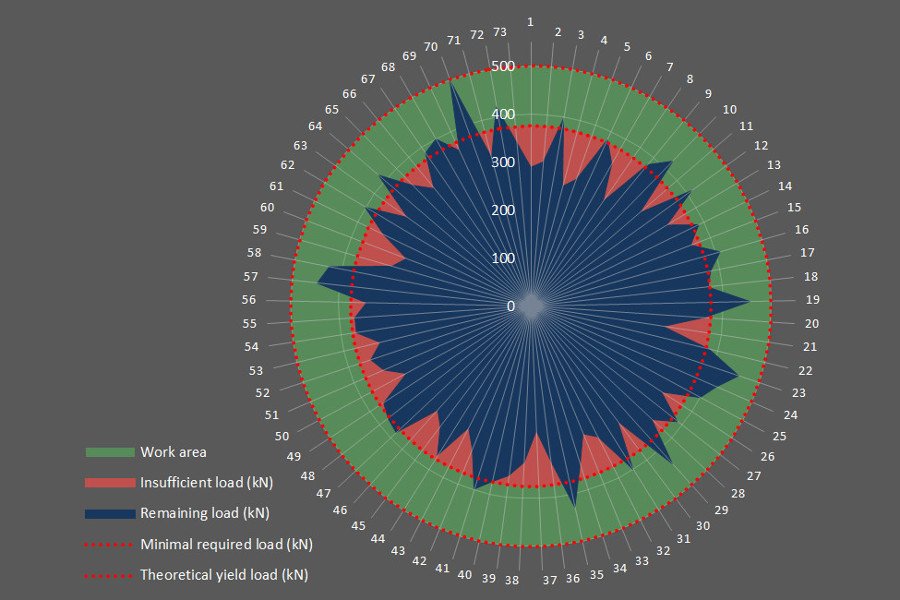

The results were astonishing. The aforementioned assumptions have a large effect on the applied and remaining pre-load in the bolts. The effect under workshop conditions showed most bolts below the minimal required preload combined with a substantial scatter.

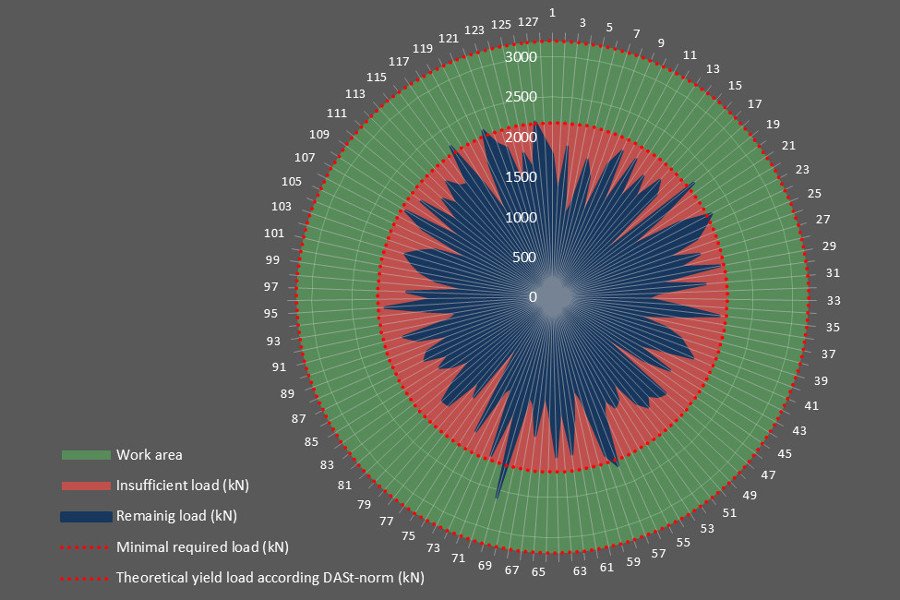

The offshore conditions showed an even worse picture with values as low as 30% of the minimal required pre-load, which was expected with the used torque, combined with a large scatter.

BoltLife procedures

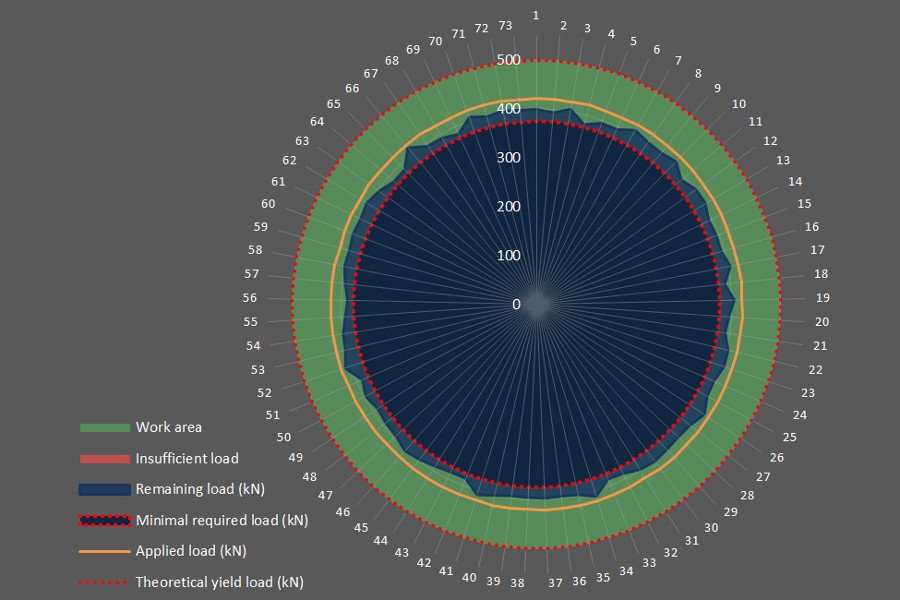

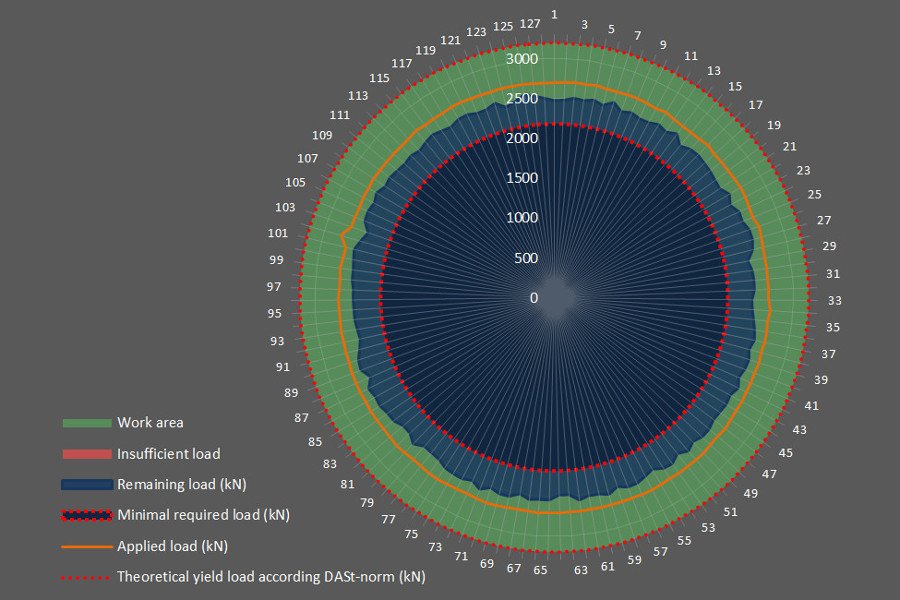

Because of the large insecurity and lack of traceability in bolted connections BoltLife developed a new, revolutionary procedure for closing critical steel on steel flanges. This procedure provides accuracy and traceability to a critical bolted connection. The results of the procedure developed by BoltLife show a consistent pre-load with all bolts above the minimum level and a scatter less than 10%. The results of the use of this procedure in an offshore situation were like the results of the workshop test. The bolts were all pre-loaded above the minimal required level with a scatter of less than 10%.

All measurement set-ups for the Checkline MAX II ultrasonic measurement device are made in our laboratory using equipment especially designed for this purpose. All set-ups were made before, and verified after the procedures.

It is not possible to use standard ultrasonic bolt measurement settings, as larger bolts are made in a different way and from different materials than the standard, smaller bolts. We have even found considerable differences between the batches in a single project produced by the same manufacturer.

The guidelines for these larger bolts are an extrapolation of the guidelines for smaller bolts. In general, all bolts larger than M36 or equivalent have a larger variety in characteristic behavior.

With this new procedure BoltLife shows that there is a lot to gain in the quality and durability of bolted connections. Having all bolts measured during the tightening process not only creates an accurate pre-load, but also provides the opportunity to periodically re-measure the bolts in the flange in actual load.

All in all, we distinguish from others in this industry through our revolutionary preload method. The achieved high and consistent preload with this system results in an exponential increase of the lifetime of your bolted connections and a decrease of the need for periodic check-ups. The accurate measurement values result in efficient bolt maintenance programs. This will lead to high cost savings at both installation and maintenance of the bolted connections while guaranteeing a high quality and certainty increase.

Are you interested in further information on our services? Feel free to contact us. We look forward to working with you!
